12V 6 Way Pre-Wired Waterproof Fuse Relay Box, 2 Relays and 6 ATC/ATO Blade Fuses, 4-Pin 40A Relay Block and Kit, for Cars Truck Marine Boat Jeep
4.9 (76 items)
Limited Time Sale$19.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212615424 | Release Date | 2026/04/06 | List Price | $13.20 | Model Number | 212615424 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Specifications: This 12v 6 way relay box package includes 2pcs 4Pin 40A JD1912 Relays, 6pcs 10A, 15A, 30 ATC/ATO blade fuses. You can replace these fuses according to actual needs

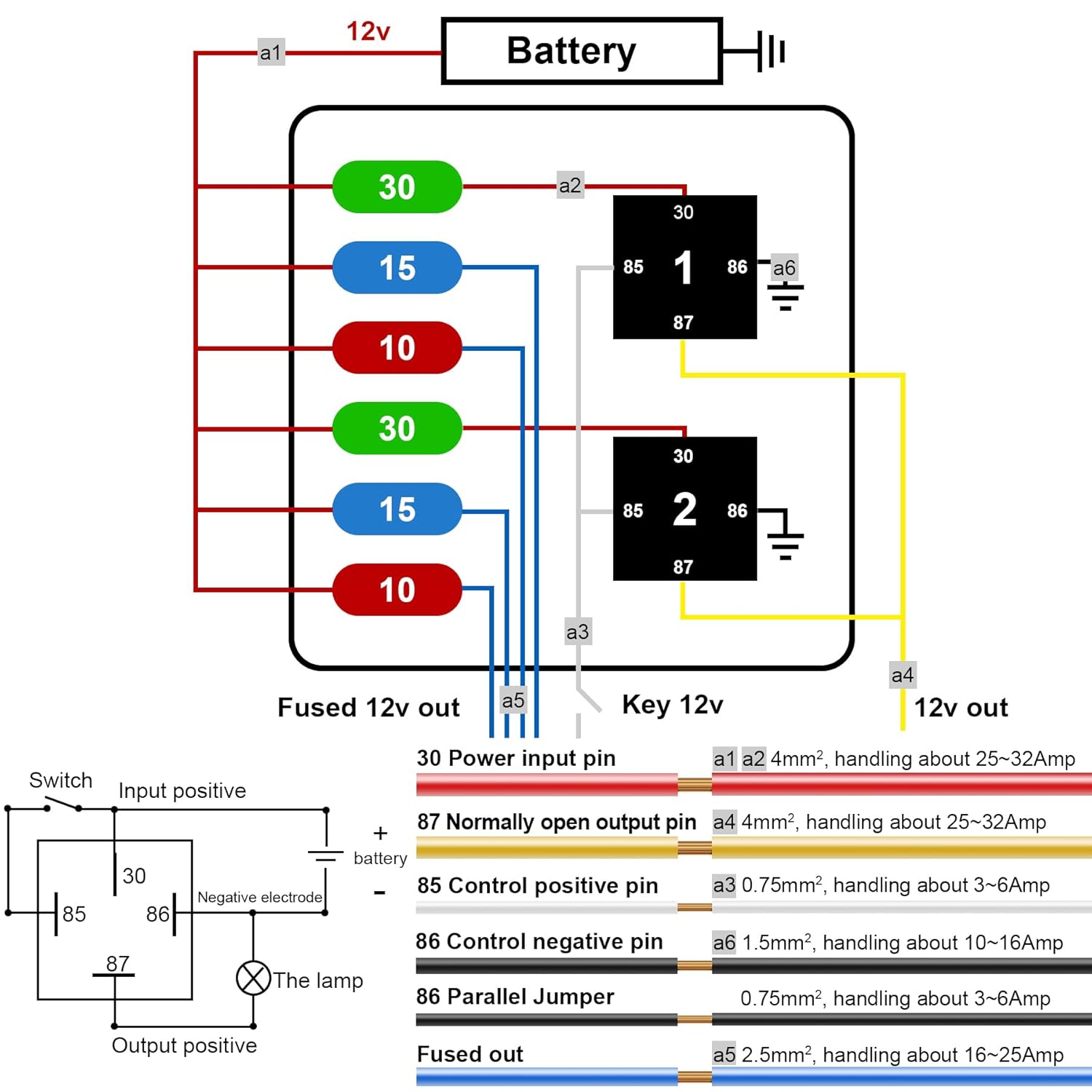

- Pre-Wired: 30 Power input red and 87 Normally open output pin yellow is 4mm² wire, handling about 25~32Amp; 85 Control positive pin White and 86 relay Parallel black is 0.75mm² wire 3~6Amp; 86 Control negative pin is 1.5mm² black wire 10~16Amp; Fused out is 2.5mm² blue wire 16~25Amp. Refer to the wiring diagram for details, Please carefully check if the wire gauge meets your requirements before purchasing. We also offer a wireless version for DIY projects
- Waterproof & Dustproof: This fuse relay box made of nylon, which is strong and durable. IP65 waterproof, with rubber coil sealing, it is waterproof, dustproof and moisture-proof, Can block most water or dust from entering the relay box, and protect electrical components from being touched by wires, effectively improving usage safety. Note: Do not place the relay box completely in water!

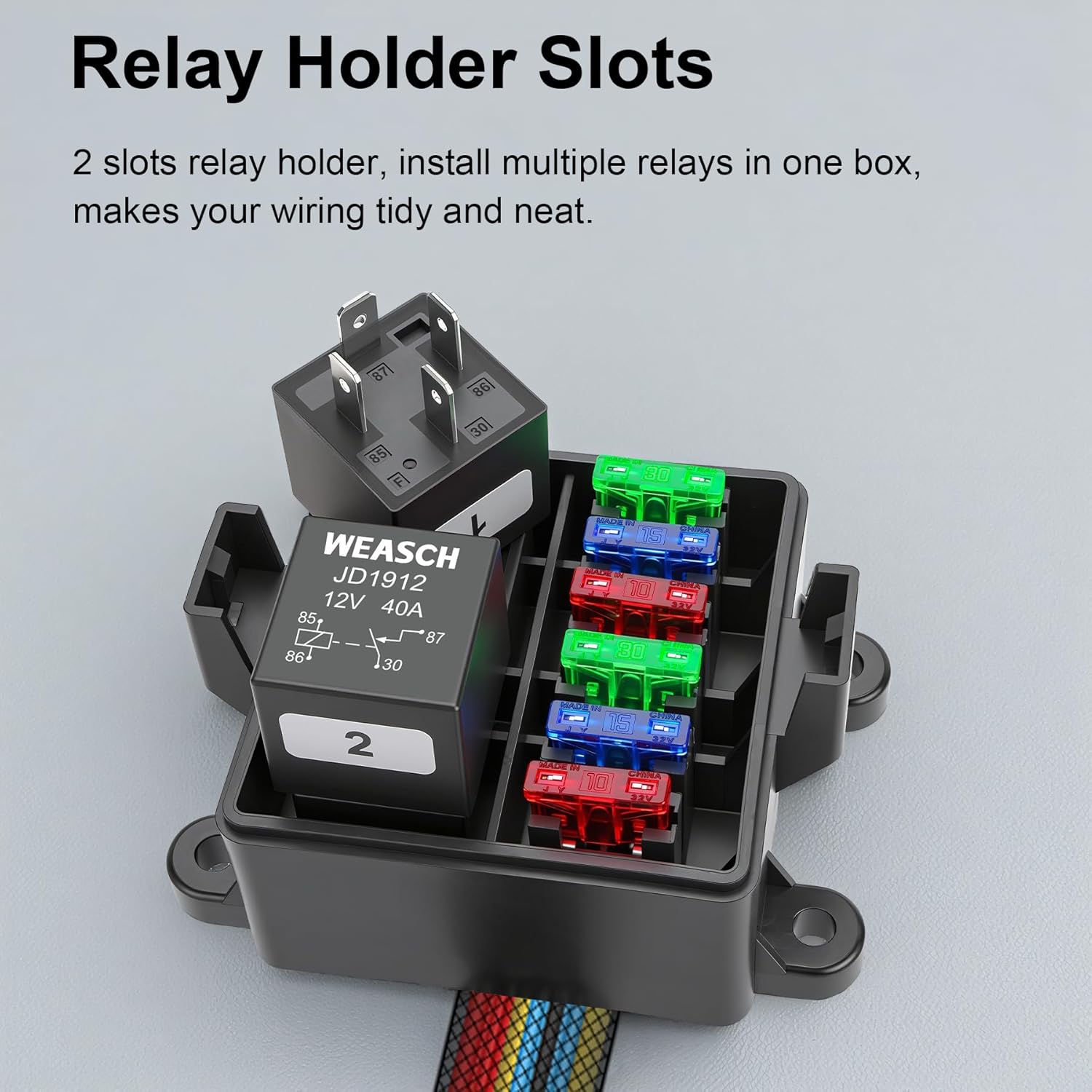

- The relay box is equipped with 6 fuse slots, 2 of which are wired in series with the relays to provide double overcurrent protection for the circuit. The fuses will blow first, protecting your equipment from damage and ensuring electrical safety
- Application: This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers, boats, etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety.
- ! Attention: Fuse box dimensions without bracket 104mm x 85mm x 74mm (4.09″ x 3.35″ x 2.91″), Please ensure you have enough space to install the fuse box before purchasing
| Model | FB62AQ |
|---|---|
| Brand Name | Weasch |
| Part Number | FB62AQ |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Screw Mount |
| Connector Type | Crimp |
| Current Rating | 40 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CE |
| Included Components | FB62AQ |
| Warranty Description | No |
| Contact Current Rating | 40 Amps |
